2/3/4 Axles Flatbed Semi-Trailer For Transporting Containers Jost Support Leg Fuwa Axle/ BPW Axle

Brand Name : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Price : Negotiable

Supply Ability : 1000 units/ month

Delivery Time : Within 35 days

Packaging Details : Waxed and covered on board

Model Number : CIVL

Overall Dimension : 13000x2300x1600mm

Axle : 2/3/4 Optional

Landing Gear : Jost

Material : Q345 Steel

Electric Voltage : 24V

Loading capacity : 35T

Contact Now

2/3/4 Axles Flatbed Semi-Trailer For Transporting Containers

Features

1) Trailer Suspension, Control Arm (fixing arm ,adjustable arm),leaf spring,bushing,front support,middle suport,rear support,Pin,all susension parts



2) Capacity is 8T-16T



3) Suitable for round beam or square beam.

4) Leaf spring : 12mm*100mm*12pcs, 13mm*90mm*13pcs ... 2",3.5" suspension



5)  Material: sup7,sup8,sup9





Specifications



FlatBed Trailer

Basic Information

Model

3 Axle Fladbed Trailer

Overall Dimension (L*W*H)

12500*2500*1600mm

Curb Weight

5800 KG

Total Weight

39900KG

Axle

3*13000KG FUWA

Rated Loading capacity

35000KG

Wheelbase

6620+1310+1310mm

King-pin size

3.5inch, heigth from earth  1600mm 90#

Wheel Base

3225mm +1350mm

Tires

11.00R22.5 tire

Landing Gear Brand

Jost

 Brake System

Air Reservoir

40L

Emergency relay valve

Jiwei

Air-chamber

Four double and two single

Main Structure

Upper wing plate

18mm with 16MN steel

Low wing plate

20mm with 16MN steel

Main beam heigth

530mm

Baseboard

3mm thickness steel plate

Light

 7 wire harness  24V LED light

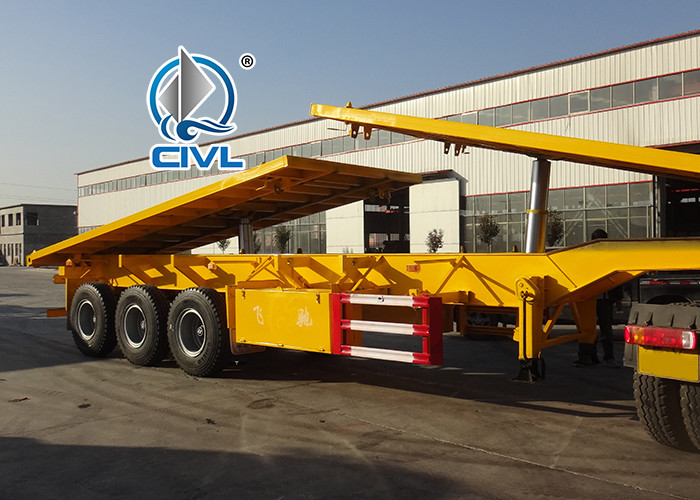

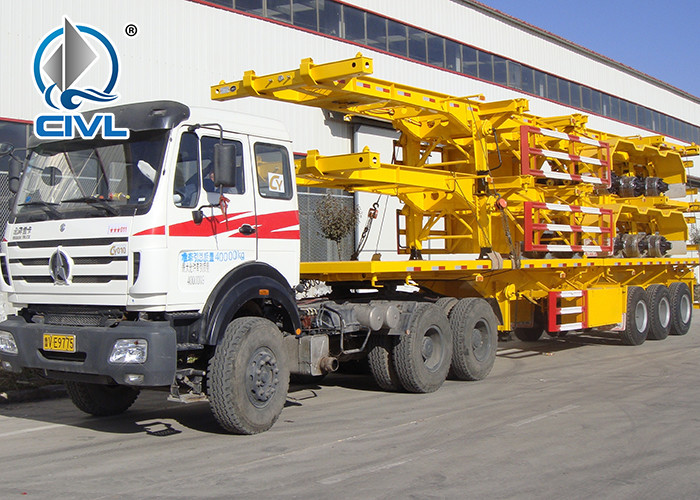

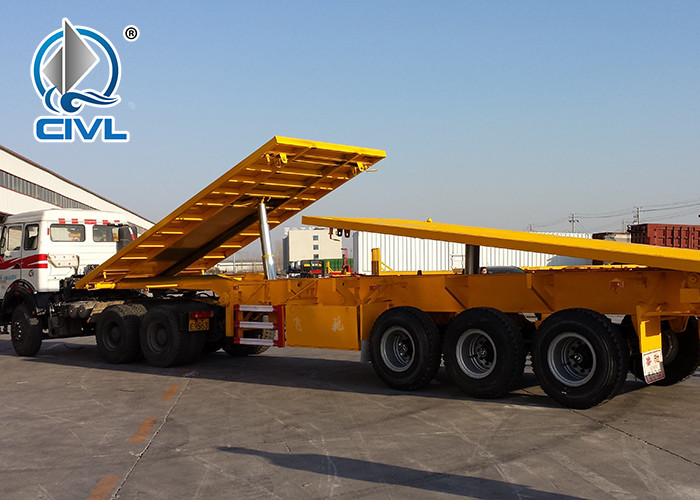

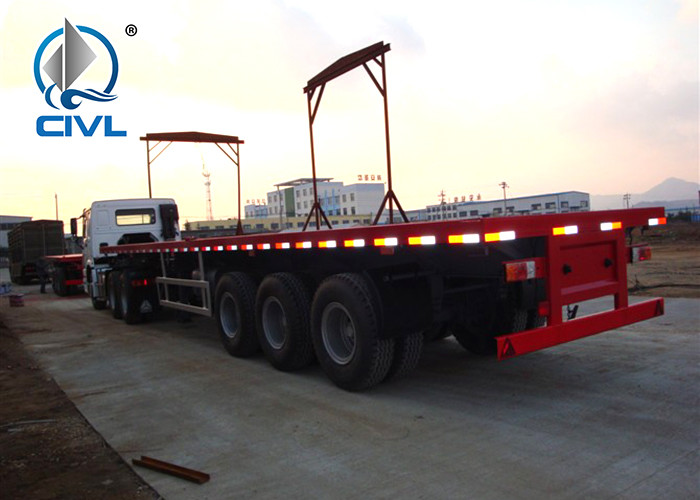

Photos

 2/3/4 Axles Flatbed Semi-Trailer For Transporting Containers Jost Support Leg Fuwa Axle/ BPW Axle2/3/4 Axles Flatbed Semi-Trailer For Transporting Containers Jost Support Leg Fuwa Axle/ BPW Axle2/3/4 Axles Flatbed Semi-Trailer For Transporting Containers Jost Support Leg Fuwa Axle/ BPW Axle2/3/4 Axles Flatbed Semi-Trailer For Transporting Containers Jost Support Leg Fuwa Axle/ BPW Axle





The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.
Truck series:

1.dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)

Machine series:

1.Wheel loader,Backhoe loder, brick making machine

2.Roller,

3.Motor Grader,

4.Bulldozer,

5.Excavator,

6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),

7,forklift and 45t contain reach stacker

8,paver and so on
