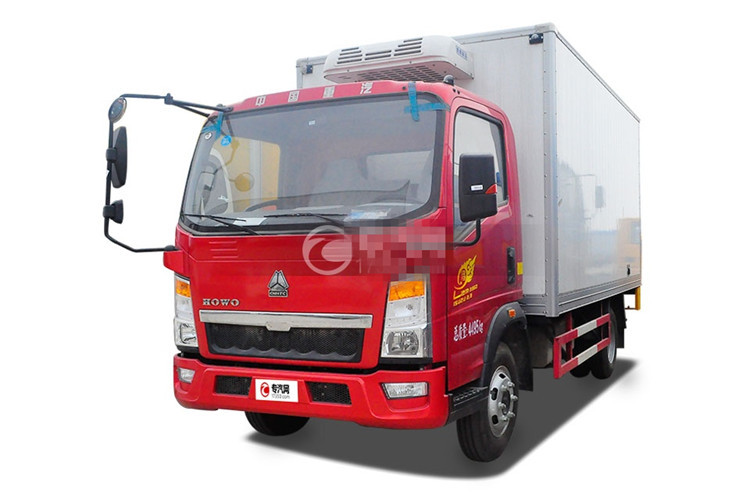

SINOTRUK HOWO Light truck 4*2 freezer Truck
Insulated truck body Introduction:
The FRP Sandwich PU Panel now is the best refridgerated poultry truck Body Material and this material is become more and more popular in the refridgerated poultry truck Body market. All close panel, adhesive structure with the type of building block, Freon free polyurethane vesicant material is our innovation, which are very different from traditional open sandwich panel with connecting by metals, injected polyurethane at site with Freon.
The Thickness of refridgerated poultry truck is according to customer's requirements, range from 30mm to 150mm.With the dimensions, the truck body can be the best Refrigeration Effect.
Insulated truck body Main Characters
Light in weight for refrigerated cargo van: 40% lighter than metal body. ( mini refrigerated vans, used refrigerated van for sale)
Better insulation: K value less than 0.3w/m2k. ( mini refrigerated vans, used refrigerated van for sale)
High in strength and long life: 5 times longer than metal body. ( mini refrigerated vans, used refrigerated van for sale )
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting. ( mini refrigerated vans, used refrigerated van for sale )
Easy to assembly and repair at site.( mini refrigerated vans, used refrigerated van for sale)
| SINOTRUK HOWO Light truck 4*2 freezer Truck |
| Main parameters | Product model | SHMC5042XLC2 |
| Gross weight (kg) | 4495 |
| Rated load (kg) | 1455 |
| Curb weight (kg) | 2845 |
| Cab seats | 3 |
| Approach/departure angle | 20/23 |
| Number of axles | 2 |
| Axle load (kg) | 1790/2705 |
| Overall dimension(mm) | 5995×2210×3000 |
| Front/rear suspension (mm) | 1160/1475 |
| Wheel base(mm) | 3360 |
| Max speed (km/h) | 90 |
| Steering | Left hand drive |
| Chassis parameters | Chassis model | ZZ1047D3414D145 |
| Brand | HOWO |
| Fuel | diesel |
| Number of wheels (mm) | 6 |
| Tire specification | 7.00-16LT 8PR,7.00R16LT 8PR,7.50-16LT 6PR,7.50R16LT 6PR |
| Rear track base (mm) | 1520 |
| Engine type | MC |
| Engine displacement (ml) | 3168 |
| Engine power (kw) | 80 |
| Emission standard | Euro III |
| Refrigerator box | Box dimension(mm) | 4150×1990×1840 |
| Thickness(mm) | 80 |
| Unit | Carrier or according to you |
| Temperature | can reach -18~20°C |
| Side door | According to you |
Product Tags:
|
|
Light Duty Trucks 4*2 Freezer Truck Box 4150*1990*1840 Red Color Images
|
