Description:
1.SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Specifications:

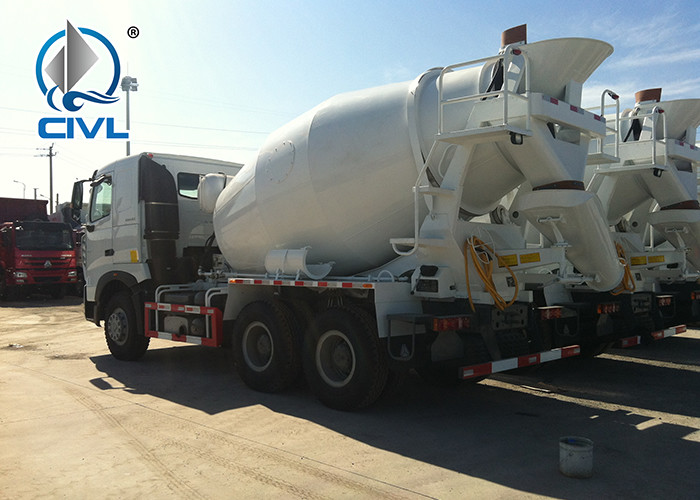

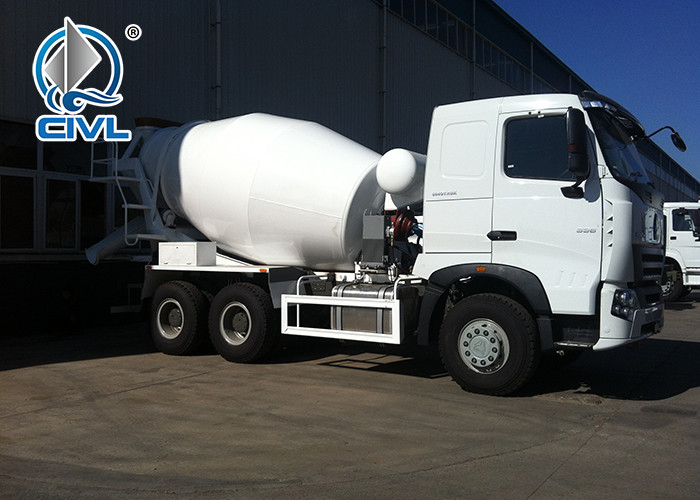

| Item | Sinotruk HOWO Concrete Mixer Truck 8cbm 6x4 |
| Truck model | CVZZ1257M3641W, driving type:6x4 |
| Maximum output | 371 hp (273 Kw) at 2200 rpm |
| Engine model | SINOTRUK WD615.87, 290hp, Euro II emission standard |
| Clutch | Single-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance |
| Front Axles | HF7/HF9 |
| Rear Axles | HC16 tandem axle, rated load 2x16ton, ratio 5.73 Wheels and tires Rim 8.5-20; tire 12.00R20, 10 units; Spare wheel carrier: with one spare wheel Brakes |
| Steering | German ZF8098, turning system pressure: 18MPa |
| Service brake | Dual circuit pneumatic brake |
| Air conditioner | With safety belts for driver and co-driver;With air conditioner |
| Transmission | HW15710, No. of speeds: 10 forward & 2 reverse |
| Export Markets | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
| Loading Capacity | 20-60 ton |
| Driver's Cab | HW76, left hand drive, air-conditioner, one sleeper |
| Mixing Volume | 8cbm |
| Water Tank Volume | 440L |
| Hydraulic Pump Brand | ARK, Italy |
| Speed Reducer Brand | TOPUNION, Italy |
Ta
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
g: mixer truck,concrete mixer/ cement mixer/ mixer truck/truck mixer/concrete pumper/Concrete mixer truck
