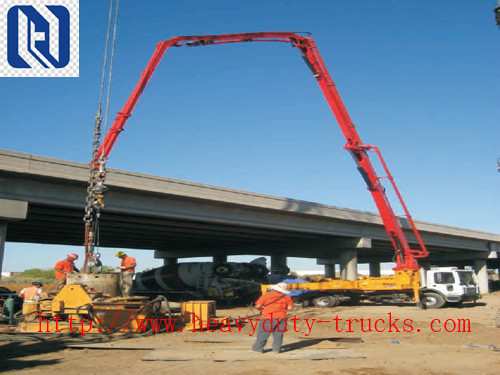

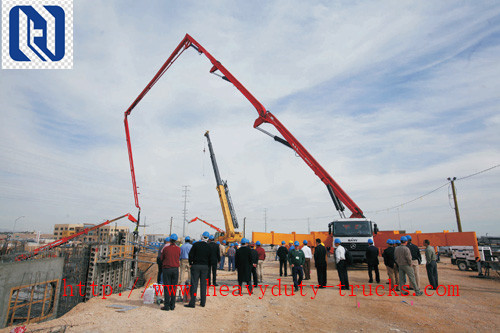

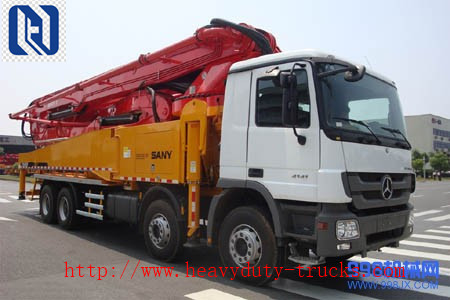

47m Boom Concrete Pump Truck 5 Sections RZ-type 32Mpa Oil Pressure Algeria/Djibouti
dorinyang@road-machine.com
International Market:Ethiopia/Kenya/Nigeria/Algeria/Angola/Benin/Botswana/Burkina Faso/Burundi/Cameroon/Cape Verde/Chad/Comoros/Congo/Djibouti/Egypt/Equatorial Guinea/Eritrea/Gabon/Gambia/Ghana/Guinea-Bissau/Ivory Coast/Lesotho/Liberia/Madagascar/Malawi/Mali/Mauritania/Mauritius/Mozambique/Namibia/Niger/Rwanda/Senegal/Seychelles/Somalia/South Sudan/Swaziland/Tanzania/Togo/Uganda/Zambia/Zimbabwe
Description:
1. In 1982, the China’s first concrete pump truck rolled off the production line in Shantui Chutian.
2. Sino Heavy Machinery CO., LTD(SHMC) is the authorized company of Shantui. In 2013, Shantui-SHMC S9
concrete pump trucks made greater achievements.
3. Advantages:
A. Energy Saving. Supporting overall power matching and automatic adjustment of engine and oil pump; Design
with a motor driven radiator to ensure automatic control, high efficiency and energy conservation; Average fuel
consumption for pumping operation reduced by 20%.
B. Stand wear and tear.
End elbow-designed with patented technology to ensure prolonged life time up to 30,000m3.
Concrete piston- Made of high-strength composite materials to ensure prolonged life time to 25,000m3.
Glasses plate-Mounted with cemented carbide to ensure prolonged life time up to 50,000m3.
Cutting ring-Mounted with cemented carbide to ensure prolonged life time up to 25,000m3.
Conveyor cylinder-Inner chrome-plated coating 30um, hardness>HV900, with extended life cycle up to 15,000m3.
Specifications:
| Model | Concrete Pump Truck with 47m Boom |
| Dimension L*W*H | 12000*2500*4000 |
| Truck GVW | 33000kg |
| Folding Type | 5 sections RZ-type |
| Boom Swirling Angle | 90/180/180/250/180 . |
| Boom Vertical Height | 46.8m |
| Boom Horizontal Length | 42.8m |
| Boom Vertical Depth | 30m |
| Minimum Boom Height(Extended) | 9.6m |
| Turntable Rotation Angle | 365 . |
| Outrigger Operating Method | X-shaped outrigger |
| Maximum Span Front Outrigger(Extended) | 9.23m |
| Maximum Span Rear Outrigger(Extended) | 9.99m |
| Theoretical Concrete Output | 170m3/h with high pressure 120m3/h with low pressure |
| Theoretical Pumping Pressure | High pressure: 12Mpa Low pressure:7Mpa |
| Conveyor Cylinder Bore | 230mm |
| Conveyor Cylinder Stroke | 2000mm |
| Hopper Capacity | 600L |
| Oil Pressure | 32Mpa |
| Remote controller | Germany HBC |
| Hydraulic Oil Cooling | Air cooling |
| Model of chassis | Mercedes-Benz ACTROS3341 |
| Engine Power | 300kw/1800rpm |
| Emission Standard | Euro III/Euro IV |
