Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition

Product Categories
SINO VEHICLE & EQUIPMENT COMPANY LTD
Contact Now

Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition

Brand Name : Sinotruk

Model Number : HOWO

Certification : ISO CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10000units

Delivery Time : 20days

Packaging Details : nude

Pto : Italy band

Pump : Italy brand

Material : Q345

Color : red ,yellow ,blue ,white ...etc

warranty : yes

tank thickness : 4mm

Contact Now

Sinotruk Howo 6x4 Concrete Mixer Truck / Concrete Mixing Equipment 6cbm 70 Cabin With Air Condition



Specifications:

machine parameter name unit parameter
      16m3(HOWO-8*4 chassis)
  model   HDT5313GJB
  Total Length mm 10850
  Total Width mm 2496
  Total Height mm 3980
  Chassis Model   HOWO-ZZ1317N3667C1
  Overall Weight(standard code) Kg 31000
  Curb Weight Kg 16600
  Wheel Base mm 1800+3600+1350
  Front Tread mm 2022
  Rear Tread mm 1830
  Front Overhang mm 1500
  rear Overhang mm 2600
  Min. Turning Radius m 11.5
  Max. Traveling Speed Km/h 90
  Steering Device(GERMANY )   ZF8098( GERMANY )
  Transmission   HW18709
engine Oil Consumption per 100 km(under limited conditions) /100km L ≤31
  Engine Model   WD615.95, WD615.96, WD615.95E, WD615.96E
  engine configuration   Water-cooled six-cylinder diesel engine Turbocharged Electronic Fuel Injection
  Engine max. output power KW 247KW(2200R/Min);276KW(2200R/Min)
  Max. Engine Torque N.m 1350;1500
  Max. PTO torque N.m 600(1100-1400r/min)
  discharge standard   state 3 Europe 3
working device Mixing Drum Volume M3 24.1M3
  transport mixing volume M3 16
  agitator rotation angle ° 10°
  agitator rotation speed r/min 0-14
  feed speed M3/min ≥3.5
  discharge speed M3/min ≥1.5
  landside degree mm 100~230
  surplus rate % nearly zero
  water tank volume L 260
  Max. mixing drum diameter mm φ2412mm
  supply water mode   air-pressure supply water or electric water pump














































Functions of the parts atop the chassis are as follows.
1. Loading
The ability to feed the concrete into the mixing drum
2. Mixing
The ability to prevent the concrete condensing or segregating during transport or waiting for unloading
3. Transport
The ability to transport the concrete from the mixing station to the construction site
4. Unloading
The ability to discharge the concrete
5. Cleaning
The ability to clean the mixing drum
Since the concrete has adhesive force, it will certainly adhere to the parts that are in contact with it, such as the feed port, tank wall, mixing blades, discharge port, etc. To prevent too much concrete attaching affecting the performance of the vehicle, it is necessary to clean the residual concrete that attaches to the tank and other parts.

Notes for New Vehicle Run-in
1. The run-in distance is set to be 2500 km. Before running in, conduct a routine check of the concrete mixer truck to ensure that the vehicle is in normal working condition.
2. After starting the engine, do not accelerate immediately. Wait for 3 to 5 minutes. After the normal operating temperature is reached, you can increase the engine speed.
3. It is strictly prohibited to shut down the engine in the state of warming car. You have to wait for 3 to 5 minutes before shutdown.
4. During the run-in period, the vehicle should run on flat roads.
5. You should shift the gears timely. Smoothly engage the clutch. Avoid sudden acceleration and emergency braking.
6. Before going up the slope, shift into the low speed level. But note that do not let the engine work at very low speeds.
7. In the first 3000km driving distance of the new vehicle, the vehicle load should not exceed 70% of the rated load. The lubrication and maintenance cycle should be shortened in the break-in period





DELIVERY PTOS :

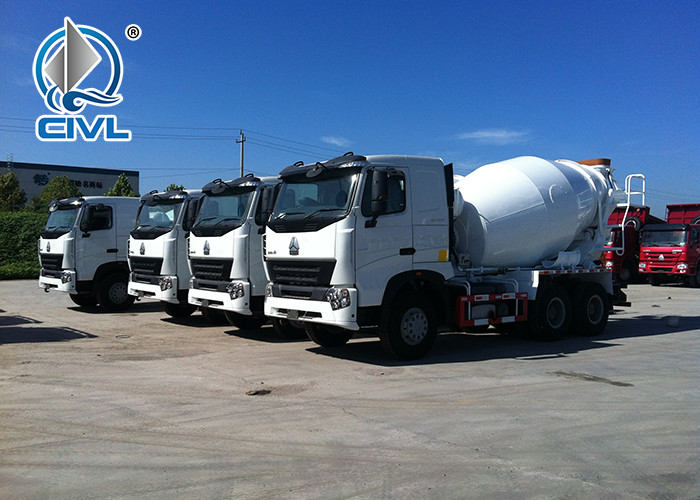

Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air ConditionSinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air ConditionSinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition

Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition



Package&Shipping:
Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition



Quality Inspection:
Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition
Service:
Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition

Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition
Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
Customers' use and feedback
Sinotruk Howo 6x4 Concrete Mixer Truck Concrete Mixing Equipment 10cbm 70 Cabin With Air Condition
