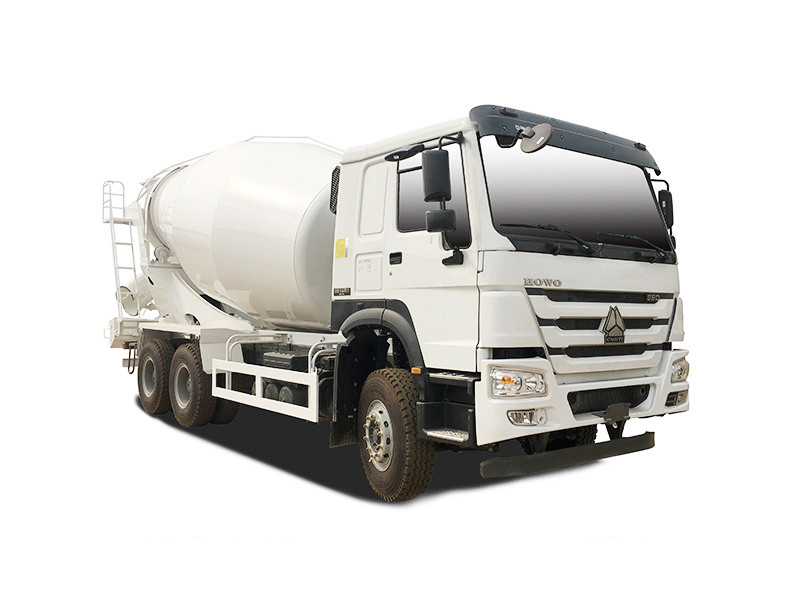

6x4 HOWO 9m3 10M3 Concrete Mixer Truck For Sales
Our company produces concrete Mixer truck, good uniformity, feeding speed, low residual feeding rate, reliability hydraulic transmission system,
convenient operation, beautiful appearance. The mixer truck also has rotary stability, reliable performance and convenient operate, long service life, etc.(concrete mixer truck)
Specification for concrete mixer truck
| Products Technical Specification |
| Type | 9m3 concrete mixer truck |
| Brand | Sinotruk HOWO 6X4 |
| Cab | Power steering |
| Vehicle Description |
| Overall dimensions(mm) | 9100×2500×4100 |
| Curb weight(vehicle) (kg) | 13600 |
| Loading capacity (kg) | 11270 |
| Max speed (Km/h) | 95-120 |
| Engine |
| model | WD615.69 |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control inner |
| Max. power/rotated speed | 247kw/1100-1600r/min |
| Displacement(ML) | 9726ml |
| Company of engine | Sinotruck engine |
| Emission level | Euro 3 |
| Chassis Description |
| Wheel base | 3825+1350 |
| Front axle | 9T |
| Rear axle | 16T*2 |
| Tyres | 12.00R20 |
| Specification for Mixing |
| Capacity of Mixing(m3) | 9m3 |
| Material of mixer body | 16Mnh Q345 10mm thickness head, 8mm thickness body. |
| Speed of Mixing(r/min) | 0-17r/min |
| Feeding speed | ≥3m³/min |
| Discharge speed | ≥1m³/min |
| Residual rate | <0.6% |
| Mixing drum inclination | 9 degree |
| Collapsed range | 60-200mm |
| Supply water method | Air pressure supply water |
| Hydraulic system | Closely hydraulic system |
| Capacity of water tank | 400Lts |
| Hydraulic Operation System | |
| Germany ZF Hydraulic pump, Germany Hydraulic Motor, Germany ZF Speed Reducer, China Brand Radiator |
