12 Wheel Heavy Duty Wrecker Heavy Rescue Tow Trucks Tow 360 Degree Rotation Crane 60Ton Lifting

Product Categories
SINO VEHICLE & EQUIPMENT COMPANY LTD
Contact Now

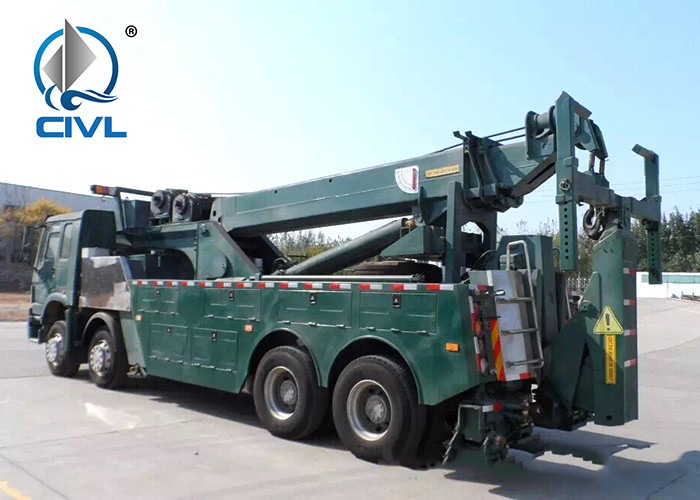

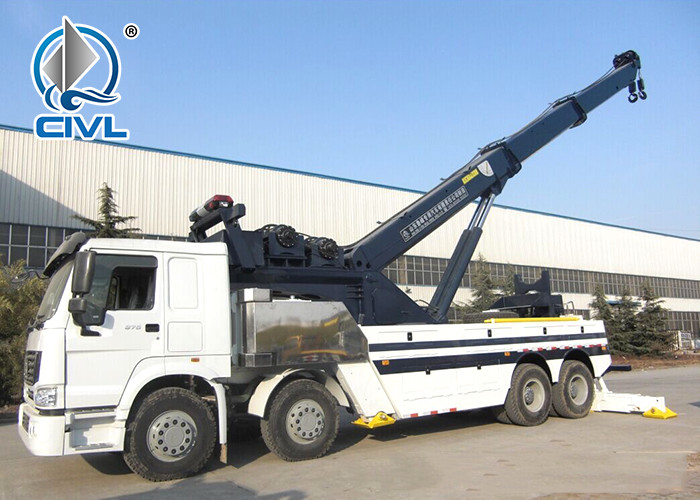

12 Wheel Heavy Duty Wrecker Heavy Rescue Tow Trucks Tow 360 Degree Rotation Crane 60Ton Lifting

Brand Name : sinotruk

Model Number : howo7

Certification : iso ccc

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000units/month

Delivery Time : 25days

Packaging Details : nude

warranty : yes

brand : sinotruk

Tire : 12.00-20

Max. Lifting Mass : 60000kg

Rotating Angle : 360

Contact Now

EuroII Sinotruk HOWO7 360 degree rotation Crane 30ton Lifting 12 wheel heavy duty wrecker tow truck for broken car tow





Description:

  1. Comfort: Howo brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
  2. Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
  3. Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.

Specifications:

Front Overhang/Rear Overhang mm 1555/2100


Free Loading

 Reorganize and outfit quality Kg 27800


Boom

 Max. Lifting Mass Kg 60000
Extension Stroke mm 3510
Max. Lifting Height mm 9500
Max. Inclination Angle 50°
Rotating Angle 360°
Range of Inclination Angle 0~50°


Under lift

 Max. Lifting Mass Kg 16000
Rating Lifting Mass Kg 12000

Rating lifting mass

fully extended Kg

 7700
Max. Effective length mm 2980
Extension Stroke mm 1640
Range of Inclination Angle -10°～93°
Folding Angle 103°
Outriggers Longitudinal Span between Front Outrigger and Rear Outrigger (mm) mm 7585
Transverse Span of Front Outriggers (mm) 5620
Transverse Span of Rear Outriggers mm 4225
Rating Towing Mass Kg 31000
Rating Pulling Force KN 250
Length of Cable Rope m 40
 12 Wheel Heavy Duty Wrecker Heavy Rescue Tow Trucks Tow 360 Degree Rotation Crane 60Ton Lifting12 Wheel Heavy Duty Wrecker Heavy Rescue Tow Trucks Tow 360 Degree Rotation Crane 60Ton Lifting

Model: ZZ1317N4667C
Number of Tire: 12
Engine Model: WD615.93E
Engine Power; 336HP;255KW
Transmission Model HW13710
Tire model 12.00
Wheel base 1800+4600+135

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
