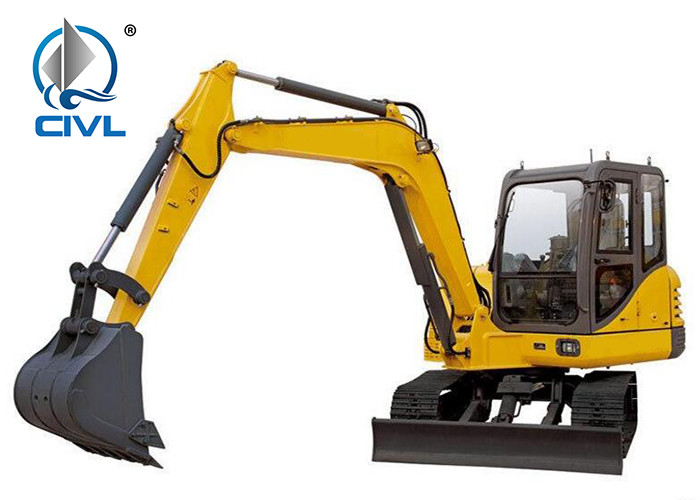

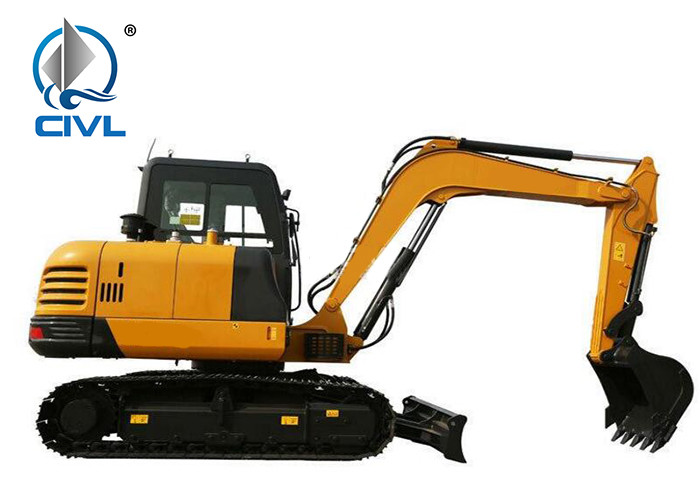

4050kg Hydraulic Crawler Excavator XE40 0.14m³ , Construction Excavator
Quick detail:
Condition: Brand New
Fuel Type:Diesel
Made year : 2020
Place of Origin: Shandong,China(Mainland)
Description:
- Featured strong power, the original Isuzu engine meets the requirement of highly efficient operation.
- The design of precise match and advanced energy saving control contribute the low fuel consumption.
- Strong traction power and digging force.
- Whole sealing ROPS/FOPS cab, luxurious seats, comfortable and safe
- Optional equipped with positioning satellite positioning and remote monitoring system
Specifications:
| Model | Unit | XE40C |
| Operating weight | kg | 4050 |
| Standard bucket capacity | m³ | 0.14 |
| Engine | Engine Model: 4TNV88 |
| Direct injection |
| Four strokes |
| Water cooling |
| 4 cylinders |
| Rated power/speed | kw/rpm | 27.1/2200 |
| Max. torque/speed | N.m | 142/1320 |
| Displacement | L | 2.19 |
| Main performance | Travel speed | km/h | 4.2/2.6 |
| Swing speed | r/min | 13.5 |
| Max. gradeability | / | 30 |
| Ground pressure | kPa | 36.3 |
| Max.Bucket digging force | kN | 23.2 |
| Max.arm crowd force | kN | 19.3 |
| Max.traction force | kN | 33.9 |
| Rate flow of main pump | L/min | 1×110+11 |
| Max pressure of prime relief valve | MPa | 21 |
| Max pressure of travel system | MPa | 21 |
| Max pressure of swing system | MPa | 21 |
| Max pressure of pilot system | MPa | 3.9 |
| Fuel capacity | Fuel tank capacity | L | 65 |
| Hydraulic tank capacity | L | 70 |
| Engine lubrication | L | 7.4 |
| Dimension | Overall length | mm | 5455 |
| Overall width | mm | 1650 |
| Overall height | mm | 2440 |
| Overall width of upper structure | mm | 1500 |
| Track length | mm | 2198 |
| Overall width of undercarriage | mm | 1635 |
| crawler width | mm | 300 |
| Dozer black(width/height) | mm | 1650×300 |
| Tumbler distance | mm | 1721 |
| Crawler gauge | mm | 1335 |
| Ground clearance | mm | 350 |
| Min.tail swing radius | mm | 1480 |
| Working range | Max. digging height | mm | 5320 |
| Max. dumping height | mm | 3700 |
| Max. digging depth | mm | 3600 |
| Max. digging reach | mm | 5810 |
| Min. swing radius | mm | 2385 |
| Max.dozer lifting height | mm | 255 |
| Max.dozer cutting depth | mm | 375 |
