CIVL LG856h Wheel Loader New 5tons Rated Load Capacity Chinese Brand Loader 162kw Cummins Engine
Description:
Wheel Loader is a kind of earth and stone construction machinery
It widely used in highway, railway, construction, hydropower, port, mine and other construction projects.
It is mainly used to shovel bulk materials such as soil, sand, lime, coal, etc. , hard soil, etc. for light shovel excavation.
It can also carry out bulldozing, lifting and loading and unloading of other materials such as wood by changing different auxiliary working devices.
Specification:
| Dimension | Rated load : kg | 17100 |
| Wheel track front/rear : mm | 1175/1065 |
| Wheel tread: mm | 2150 |
| Overall dimension LxWxH: mm | 8253*2750*3450 |
| Wheelbase: mm | 3320 |
| Ground clearance mm | 431 |
| Turning radius,outside of tire mm | 6205 |
| Turning radius,center of tire mm | 5896 |
| Turning radius,bucket carry mm | 6914 |
| Engine | Make | Cummins |
| Model | 6LT9.3 |
| Gross Power | 162KW(217hp)@2200 rpm |
| Displacement | 9.3L |
| Cylinder no. | 6 |
| Aspiration | Turbocharged |
| Transmission | Type | Planetary type, power shift |
| Torque converter | Double-stage, four-element |
| Max. travel speed, fwd | 39.7km/h |
| Max. travel speed, rev | 16.3km/h |
| Speed no. | 2 forward & 1 rear |
| Loader arm performance | Tipping load-straight | 12500kg |
| Tipping load- full turn | 10800kg |
| Bucket breakout force | 173KN |
| Max dump angle at full height | 45° |
| Max hinge pin height | 4159mm |
| Max digging depth, bucket level | 40mm |
| Bucket rollback at ground level | 44° |
| Bucket rollback at carry | 49° |
| Bucket rollback at max height | 58.5° |
| Bucket | Reference bucket | 3m3 |
| Tire | Size | 23.5-25 |
| Fuel tank | | 300L |

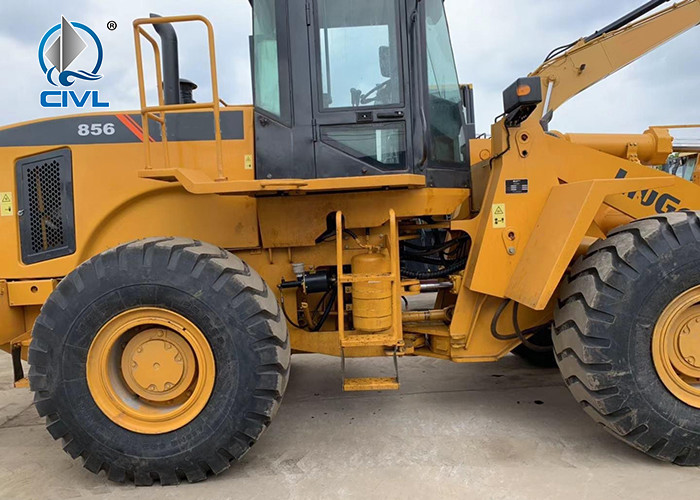

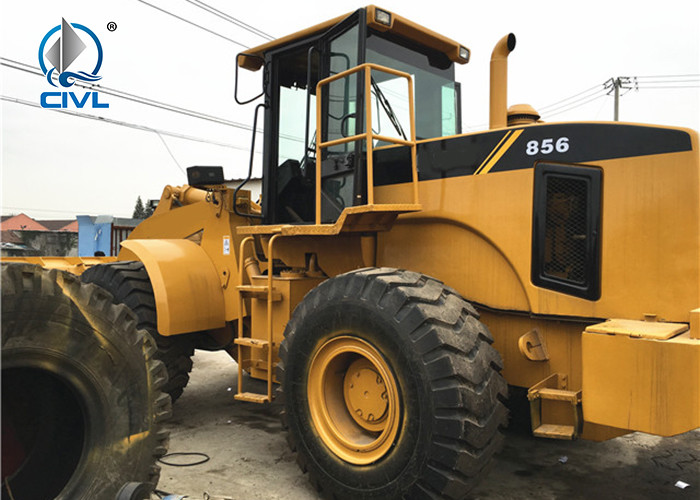

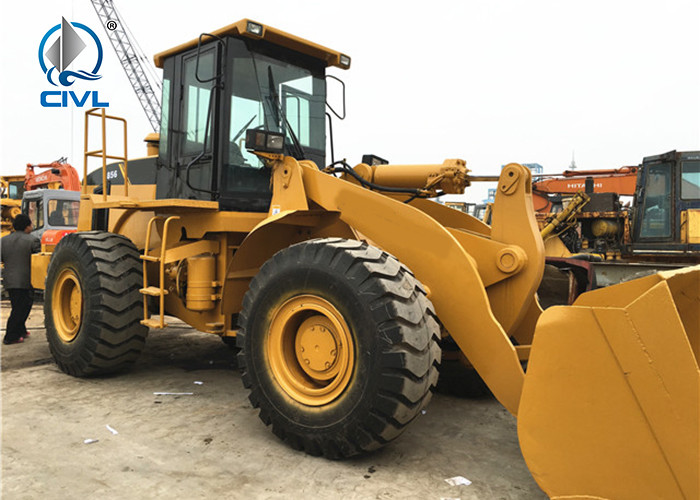

Photos:
Machine very good condition.
Engine pump good.
Our engineer already inspect machine.good working condition.
About the machine more detial please contract us.
