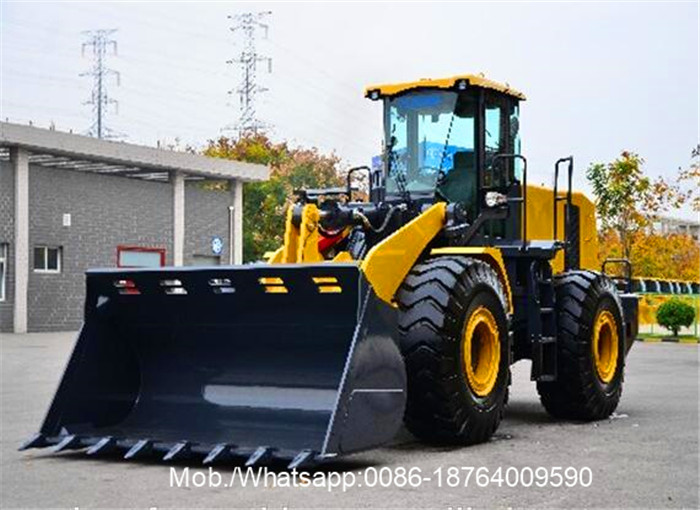

XCMG ZL50GN WD10G220E23 yellow color desiel engine wheel loader
Description:
XCMG's proprietary high-torque high-efficiency drive trains are well matched.
The front frame adopts wing box structure of integral casting ear seat, and the rear frame adopts variable rigidity bending plate to weld shaped box girder with special cross-section, which has strong bearing capacity.
Front and rear frame articulated parts adopt rolling bearing + joint bearing structure, which has strong bearing capacity and high working stability.
The model has a short wheelbase, a small turning radius, and is flexible and has excellent site adaptability.
The ergonomically designed cab has a monolithic skeleton structure, exquisite interiors, extra space, noise reduction, and comfortable operation.
Single row of large radiators, anti-blocking, easy to clean.
The configuration is various, the machine is complete, and it can fully meet the construction requirements of different regions and working conditions.
Specification:
| Description | Unit | Parameter value |
| Rated operating load | kg | 5000 |
| Bucket capacity | m³ | 2.5~4.5 |
| Machine weight | kg | 17500±300 |
| Dump clearance at maximum lift | mm | 3100~3780 |
| Reach at maximum lift | mm | 1100~1220 |
| Wheel base | mm | 3300 |
| Tread | mm | 2250 |
| Max.breakout force | kN | 175±5 |
| Max.horse power | kN | 160±5 |
| Hydraulic cycle time-raise | s | ≤6 |
| Total hydraulic cycle time | s | ≤10.5 |
| Min. turning radius over tyres | mm | 5925±50 |
| Articulation angle | ° | 38 |
| Gradeability | ° | 30 |
| Tyre size | | 23.5-25-16PR |
| Overall machine dimension L×W×H | mm | 8225×3016×3515 |
| Model | | WD10G220E21 |
| Rated Power | kW | 162 |
| Travel Speed | Ⅰ-gear(F/R) | km/h | 13/17 |
| Ⅱ-gear(F) | km/h | 41 |
Detailed photo:
Related products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 55470323, 54640582, 54640443, 54622108, 54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
With over 51 years of experience , we have becoem one of the key manufacturers of trucks and road machiens in China .
Exporting to more than 50 countries for 14 years .
For more information ,contact us now.
