Model LW600KV Compact Wheel Loader Volume 3.5m3, 6000kgs, Euro II/III

Name: Model LW600KV Compact Wheel Loader Volume 35m3 6000kgs Euro IIIII
Brand: CIVL
Price: 1 USD

Brand Name : CIVL

Model Number : LW600FN/LW600KV

Certification : ISO

Place of Origin : China

MOQ : 1 unit

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 units per week

Delivery Time : within 25 days

Packaging Details : nude

bucket capacity : 3.5m3

loading weight : 6000kgs

emission : Euro II/III

Engine power : 178KW

Engine brand : Weichai

Standard : Euro 2

Appication : stone, quarry, mud, mining

Contact Now

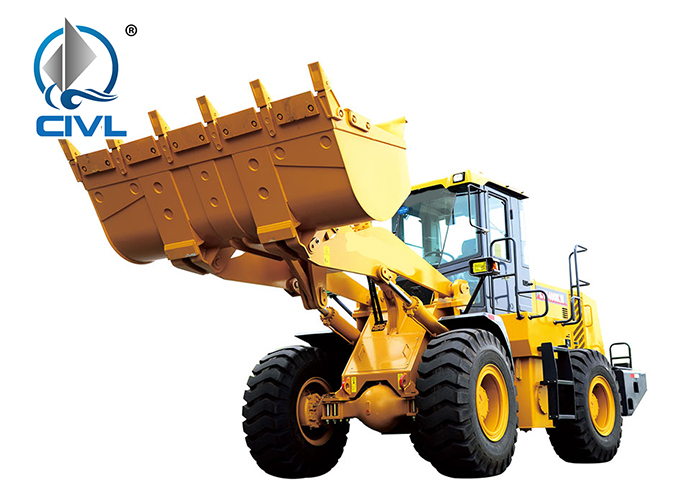

CIVL brand wheel loader, model LW600KV, volume 3.5m3, 6000kgs, Euro II/III

Rated operating load: 6000kg
Bucket capacity: 3.0~4.5m³
Machine weight: 20000±300kg

LW600KV Wheel Loader is xugong relying on international technical resources, the latest research and development of cross-generation products! This model breaks the traditional structure, uses the variable plunger pump, according to the concrete working condition to work and the steering hydraulic system provides the different pressure and the flow, realizes the automatic power allocation (APD), the fuel utilization efficiency greatly increases, the average energy saving 15%.

SPECIFICATION:

MODEL	LW600FN	LW500KL-T18	LW500KN—LNG	LW1200KN	LW300KN
Loading weight(kg)	6000	18000	5000	12000	3000
Operating weight (kg)	19500	21000	17200	51000	11000±200
Bucket volume (m³)	3.5	Fork loading	2.5-4.5	6.5	1.8
Max.dig power (kN)	≥205	170		394	130±5
Max.towing power (kN)	≥179				100±5
Type	Tyre	Tyre		Tyre	Tyre
Engine
Engine brand	Wechai	Wechai	162	Cummins	Yuchai
Model	WD10G240E201			QSK19	YC6J125Z-T22
Power (kW/r/min)	178/2200	162/2000		418/2000	92/2000
Overall size
L (mm)	8435	8180		12337	7250
W(mm)	3216	2950		3875	2482
H(mm)	3465	3515		4319	3390
Min.ground clearance(mm)		＞1500		505	390
Bucket width (mm)		1500×1014	3100-3700	3875	2482
Wheelbase(mm)	3350	3410		4500	2900
Wheel track (mm)	2265	2350		2710	1850
Mion.turningradius) (mm)	6005	6600		7622	5170±50
Lifting time (s)	≤6	≤8.5			5.6
Time(s)	≤10.9	≤16		15.3	9.8
Tyre	23.5-25-20PR	23.5-25-24PR :23.5-25-20PR		35/65R33	17.5-25-12PR

Model LW600KV Compact Wheel Loader Volume 3.5m3, 6000kgs, Euro II/III

The main products we deal with now are SINOTRUK HOWO, XCMG, SHANTUI, ZOOMLION and SANY.
Truck series:
1.dump trucks; cargo trucks
2. tractor trucks;
3. tanker trucks,( water tanker and oil tanker)
4. mixer trucks and concrete pump truck
5. mine dump trucks( 4x2 off-road mine tipper, 6x4 70T mine dump truck, 6x6 articualted dump trucks)
6. full drive trucks( 4x4. 6x6 and 8x8 Trucks)
7, garbage trucks( garbage compector truck, suction trucks)
8. truck cranes(normal road truck crane, truck mounted crane)
9. special trucks( wrecker trucks, military trucks...)
10. truck trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11. truck spare parts( howo, howo A7, golden prince all series trucks parts supplying)
Machine series:
1.Wheel loader,Backhoe loder, brick making machine
2.Roller,
3.Motor Grader,
4.Bulldozer,
5.Excavator,
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane),
7,forklift and 45t contain reach stacker
8,paver and so on
