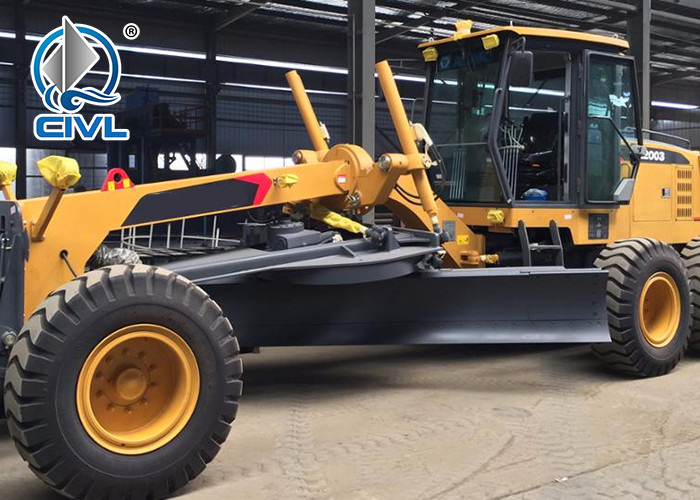

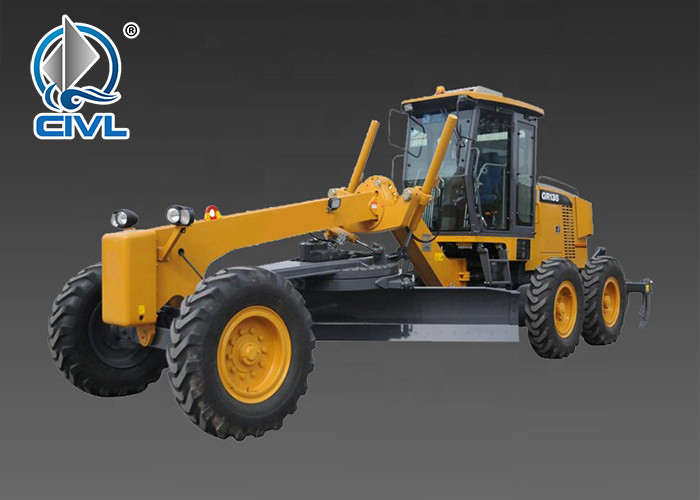

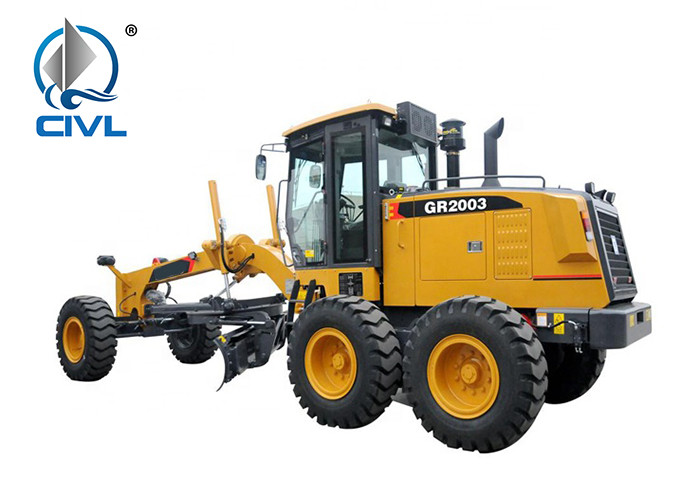

Custom D6114 ZG14B Motor Graders GR200 with ISO Certificate , 16T Payload
Description:
Sino Heavy Machinery Co., Ltd., is the distributor of , HOWO, and all SINOTRUK series trucks made by China National Heavy Duty Truck Corp. (CNHTC). We are a group corporation that combines industry and trade. Our products involve dump trucks, dump trailers, concrete mixers, semi-trailers and hauling trucks.
Our main products are:
1. HOWO dump truck, HOWO tractor, HOWO concrete mixer, HOWO parts, water tank, semi-trailers, etc.
2. XCMG truck cranes, XCMG wheel loaders and spare parts.
We markets products in more than 50 countries and districts all over the world, including Russia, Iran, Indonesia, Vietnam, Saudi Arabia, Algeria, Sudan, Angora, Turkey, Brazil, Peru, and Cuba.
We believe that our warm and professional service will bring you pleasant surprises as well as fortune.
Cooperate with us, You can get harmonious service like family.
Specification:
| Basic specification |

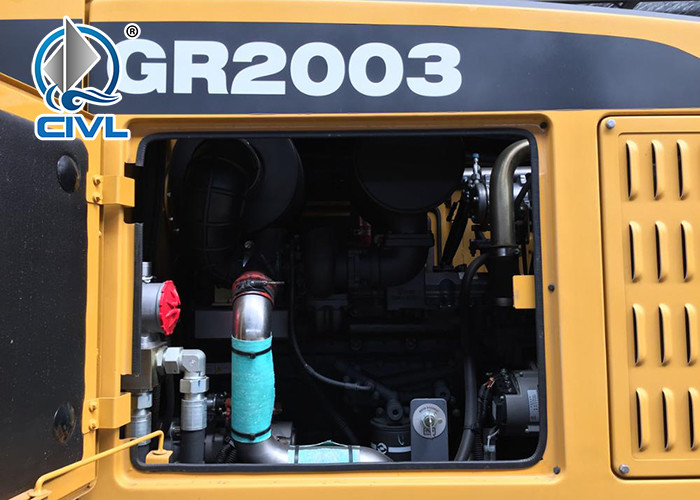

| Engine model | D6114 ZG14B |
| Rated power/speed | 147kW/2200rpm |
| Dimension(LxWxH) | 8932×2625×3470mm |
| Operating weight(Standard) | 16000kg |
| Performance specification |
| Travelling speed ,forward | 5/8/11/19/23/38 km/h |
| Travelling speed ,reverse | 5/11/23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3-1.8MPa |
| Operating specification |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°_70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
| Basic specification
|
| Engine model
| D6114 ZG14B
|
| Rated power/speed
| 147kW/2200rpm
|
| Dimension(LxWxH)
| 8932×2625×3470mm
|
| Operating weight(Standard)
| 16000kg
|
| Performance specification
|
| Travelling speed ,forward
| 5 /8 / 11 /19 /23/ 38 km/h
|
| Travelling speed ,reverse
| 5/ 11/ 23 km/h
|
| Tractive force(f=0.75)
| 82KN
|
| Max. gradeability
| 20%
|
| Tire inflation pressure
| 260 kPa
|
| Working hydraulic pressure
| 16 MPa
|
| Transmission pressure
| 1.3 - 1.8MPa
|
| Operating specification
|
| Max. steering angle of front wheels
| ±50°
|
| Max. lean angle of front wheels
| ±17°
|
| Max. oscillation angle of front axle
| ±15°
|
| Max. oscillation angle of balance box
| 15
|
| Frame articulation angle
| ±27°
|
| Min. turning radius using articulation
| 7.3m
|
| Biade
|
| Maximum lift above ground
| 450mm
|
| Maximum depth of cutting
| 500mm
|
| Maximum blade position angle
| 90°
|
| Blade cutting angle
| 28°_70°
|
| Circle reversing rotation
| 360°
|
| Moldboard width X height
| 4270×610mm
|
