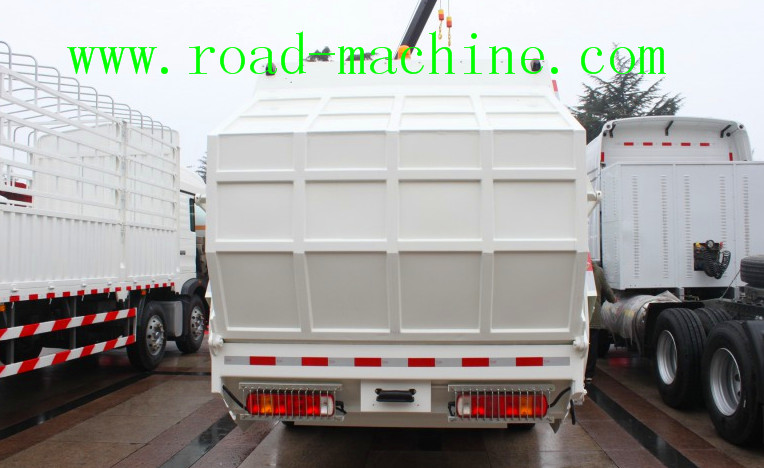

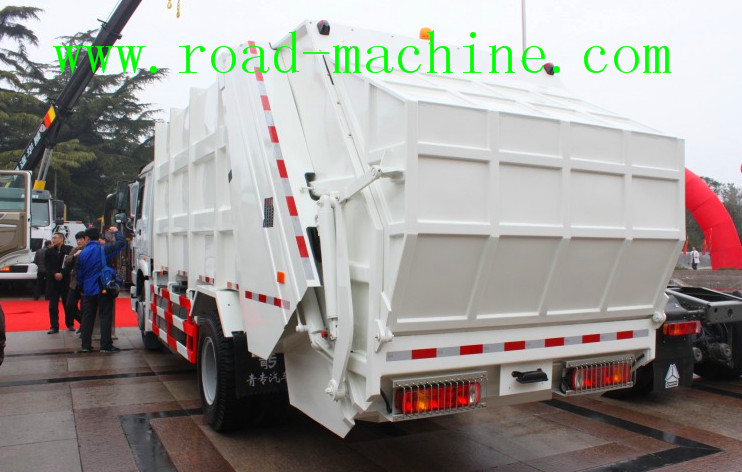

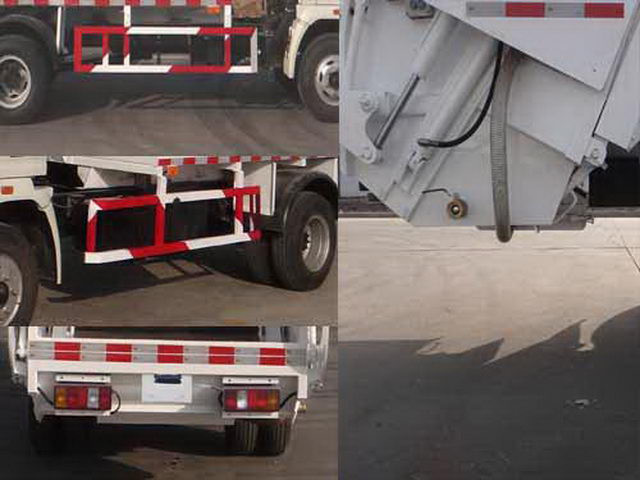

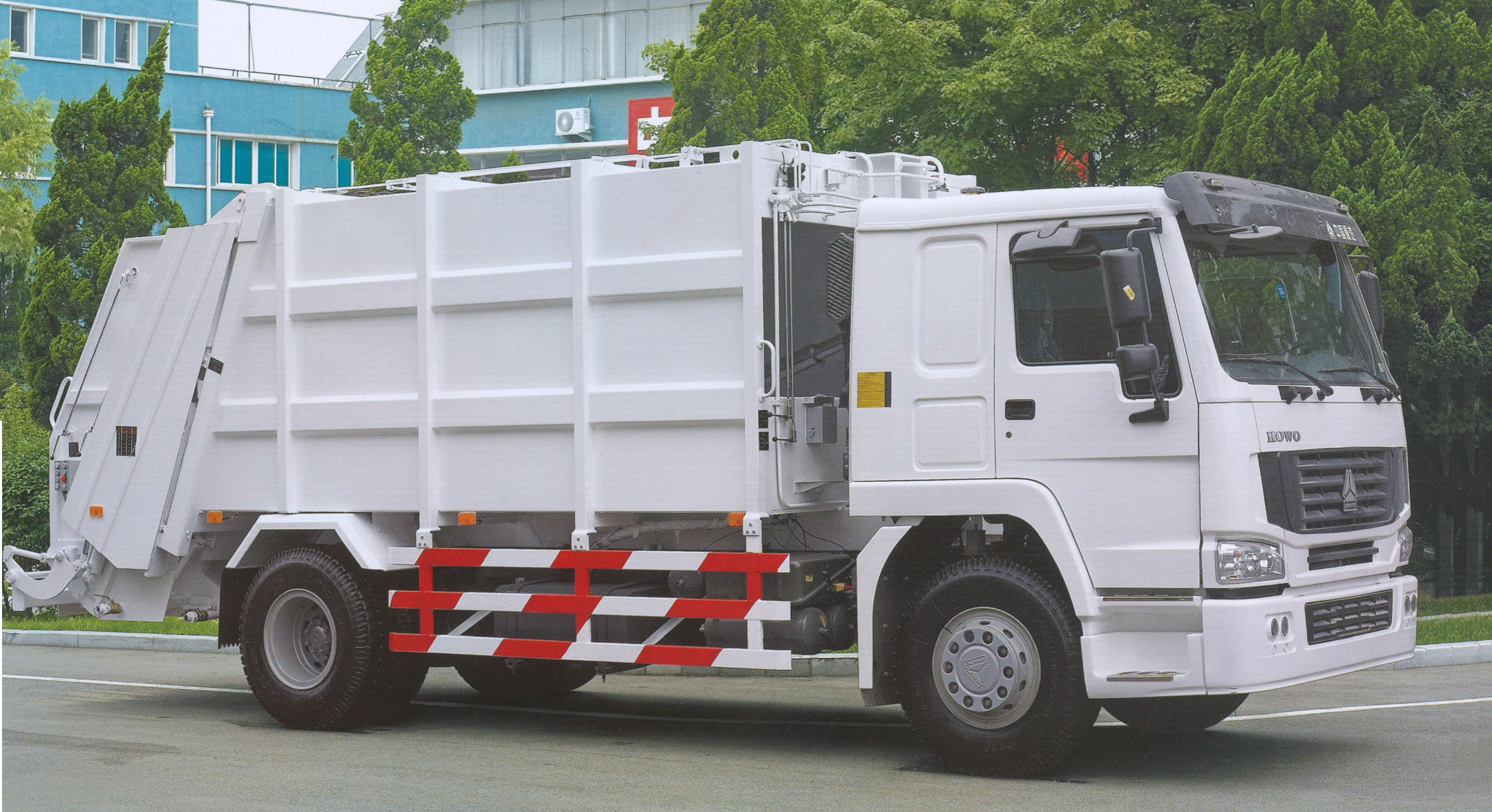

Sinotruck Howo 4 x 2 8L 8-12m3 Compacted Garbage truck Recycling Type

Condition:

New

Drive
Wheel:

4x2

Type:

Recycling

Transmission
Type:

Manual

Emission
Standard:

Euro 2

Volume:

3001 - 6000L

Fuel Type:

Diesel

Engine
Capacity:

8L

Size:

6125x2140x2600 mm

Gross Vehicle
 Weight:

32000

Place of
Origin:

Shandong China
 (Mainland)

Brand Name:

SINOTRUK

Model Number:

ZZ1167M4611W

Certification:

CE

After-sales  Service Provided:

Overseas service
center available

Color:

White,Red,Blue,
Black,Yellow,Option

Dimension(LxW xH)(unloaded)(mm)

6980x2496x3150

Cargo body capacity (LxWxH)(mm)

12m³

Hydraulic system working pressure(Mpa)

20

A cycle time filling job (s)

≤25

A waste of time shift (s)

≤45

Maximum crushing compression strength (kg)


>35000

Wheel base (mm)

3800

Max speed(km/h)

75

Curb weight(kg)

7950

Loading Weight(kg)

7920

Engine
( technology, made in China)

Model

WD615.87,water-cooled,four strokes,6 cylinders
 in line with  water cooling,turbocharged an,
intercooling, directly injection

Fuel type

Diesel

Power,max(kw/rpm)

213/2200

Emission

EUROII

Fuel tanker capacity (L)

300

Transmission

Model

HW15710,10 forward&2 reverse

Brake system


Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on
rear wheels


Steering system


Model

ZF8098

Front axle

Steering with double T-cross section beam

Rear axle

Pressed axle housing,central double reduction with differential
locks between axles and wheels

Tyre

12.00-20

Electrical system

Battery

2X12V/165Ah

Alternato

28V-1500kw

Starter

7.5Kw/24V

Cab

 HW70
