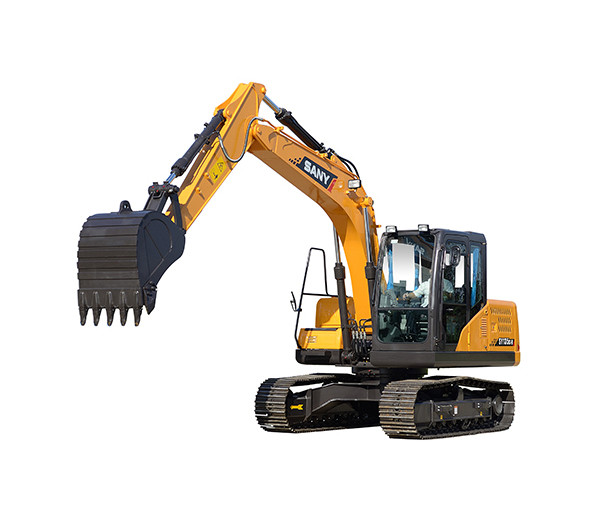

SY135 Hydraulic Excavator Advanced Engine And Hydraulic System

Name: SY135 Hydraulic Excavator Advanced Engine And Hydraulic System
Brand: CIVL
Price: 1 USD

Buy cheap SY135 Hydraulic Excavator Advanced Engine And Hydraulic System product

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Engine rated Power : 72.7/2,200 kW/rpm

Engine model : 4BG1-TABGC-03-C2

Engine max.torque : 337.6/1600N*m/rpm

Arm cylinders bore X stroke : 115×1,175mm

Overall weight : 13500kg

Bucket capacity : 0.53m3

Delivery Time : Within 35 days

Contact Now

Advanced engine and hydraulic system

Super powerful engine combines with the new electrical positive flow hydro-system makes the excavator worked with high-efficiency and well adapted to different working environments.

Durable and reliable

With reinforced working device and high-strength swing plant, construction components' life span are improved 30%.

Efficient and energy-saving

New hydro-system, accurate flow control ability makes the efficiency improved 10% and fuel consumption reduced 10%.

Transport length7700mm

Transport width2550mm

Transport height2815mm

Upper body width2490mm

Std. track shoe width500mm

Track gauge1990mm

Min. ground clearance425mm

Tail swing radius2240mm

Roller gauge2930mm

Track length3665mm

Track height752mm

Operator eye level2330mm

Cab top length1632mm

Tail length1510mm

Counterweight ground cleararice903mm

Length (without working device)4057mm

Ground length (transportation)4319mm

Counterweight clearance1925mm

Blade height (to cab roof)2740mm

Max. digging height8685mm

Max. dumping height6180mm

Max. digging depth5510mm

Max. vertical digging depth4890mm

Max. digging reach8290mm

Min. swing radius2500mm

Boom height at min.swing radius6500mm

Engine model4BG1-TABGC-03-C2

Engine rated power72.7/2,200 kW/rpm

Engine max.torque337.6/1600N*m/rpm

Engine displacement4.329L

Engine start motor24/4.5V/kw

Engine generator50V/A

Boom cylinders bore X stroke105×990mm

Arm cylinders bore X stroke115×1,175mm

Bucket cylinders bore X stroke100×885mm

Overall weight13500kg

Bucket capacity0.53m3

Bucket digging force92.7kN

Arm digging force66.13kN

Tractive force113kN

Travel speed (high/low)5.5/3.5km/h

Swing speed12rpm

Gradeability70%/35°

Ground pressure41.7kPa

Fuel tank capacity240L

Hyd tank capacity150L

Engine oil capacity15L

Engine coolant capacity10L

Final drive capacity2×2.6L

Track shoes(per side)44

Carrier roller(per side)1

Lower roller(per side)7

Boom length4.6m

Arm length2.5m

Bucket capacity (optional)0.22/0.7m3

Track shoe width (optional)600mm

Engine hood length2104mm

Swing drive capacity3L
